Build dashboards and reports with Data Studio

Requires a Business subscription plan

In this guide, we'll walk you through using Google's free data visualization tool Data Studio to build interactive reports from your Orca Scan data.

1. Sign up for Data Studio

Data Studio runs in the browser, so you can use it on both Windows and Mac without any installation. Just head to datastudio.google.com to get started.

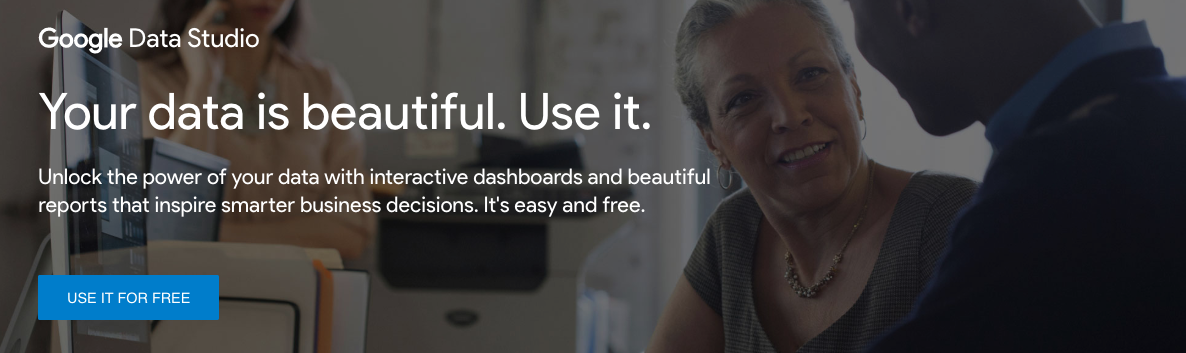

Screenshot of Google Data Studio website

Login to your , select the sheet that you want to connect to Data Studio and head to the Integrations settings.

Opening the sheet integration menu

Enable "Allow public URL access" and copy the Live Data URL to your clipboard. You're going to add this URL to a Google Sheet, which will be used as the data source for Data Studio to query your Orca Scan data.

Copying the Orca Scan unique sheet URL

As an additional confirmation check, you must save the integration changes.

Saving the integration changes

Now, let's head over to Google Sheets...

4. Create a Google Sheet

When connecting directly to Data Studio, you can only refresh the data every 12 hours. So, we're going to set up a Google Sheet as the data source we can refresh every 15 minutes.

5. Add IMPORTDATA formula

Once you've got an empty Google Sheet, place the cursor in the A1 cell and add the =IMPORTDATA formula.

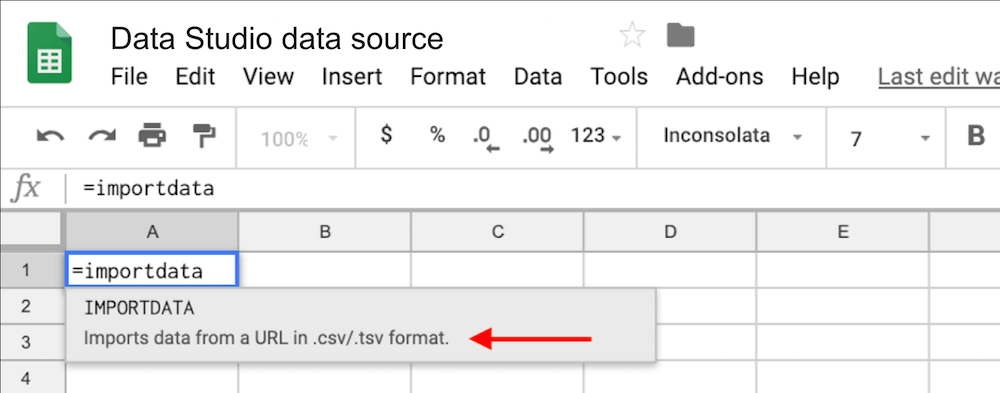

Typing in the IMPORTDATA formula in a Google Sheets cell

Paste the export link

Now add the Live Data URL from Orca Scan within the brackets =IMPORTDATA("replace-with-your-orca-sheet-url-here.csv").

Important: be sure to include the quotation marks!

Pasting Orca Scan export link into Google Sheets cell

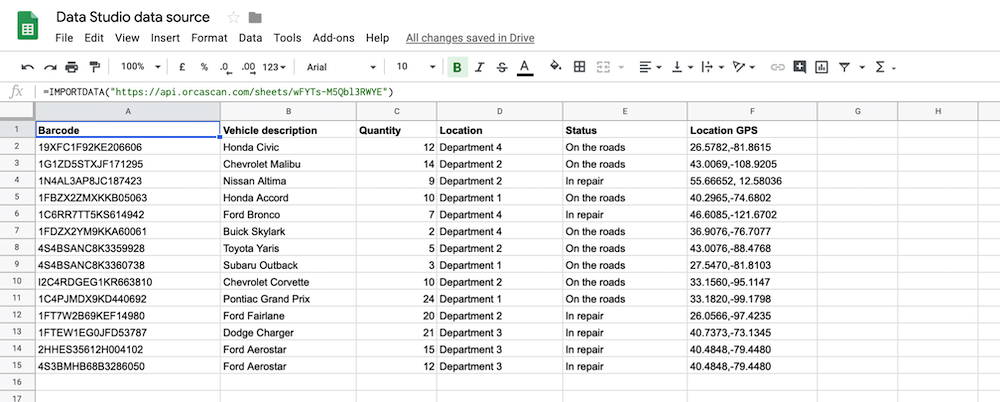

Once your data is loaded into the sheet you can now use it as the data source to build your reports in Data Studio.

Pasting Orca Scan export link into Google Sheets cell

Next, over to Data Studio...

6. Add the sheet as data source in Data Studio

Reports are built around data sources, so you won't see any editor controls or menus until you add one. You can add your Google Sheet in these 4 steps:

  1. On the left, click Create Data Source
  2. Scroll down and find the Google Sheets connector
  3. Select your sheet and click Connect
  4. Change the field data types if needed

Learn more

Here's the full guide to creating data sources.

7. Create a report

You can now build reports. Start by adding a new blank report.

Then select your new Data Source in the Data Source Picker on the right, and add your first chart from the Add a chart option in the toolbar.

Learn more

In the example above, we have used a GPS location map and a simple Pie chart. For a more in-depth guide on creating reports, read this Tutorial: Create a new report.

How to refresh data

You can refresh the cache at any time by viewing or editing the report and clicking Refresh data, but you can also control how often to run the refresh.

By using Google Sheets as the data source, you can set that to every 15 minutes.

It happens at the Data Source level, so you need to Edit the data source, and in the toolbar at the top, set the Data freshness.

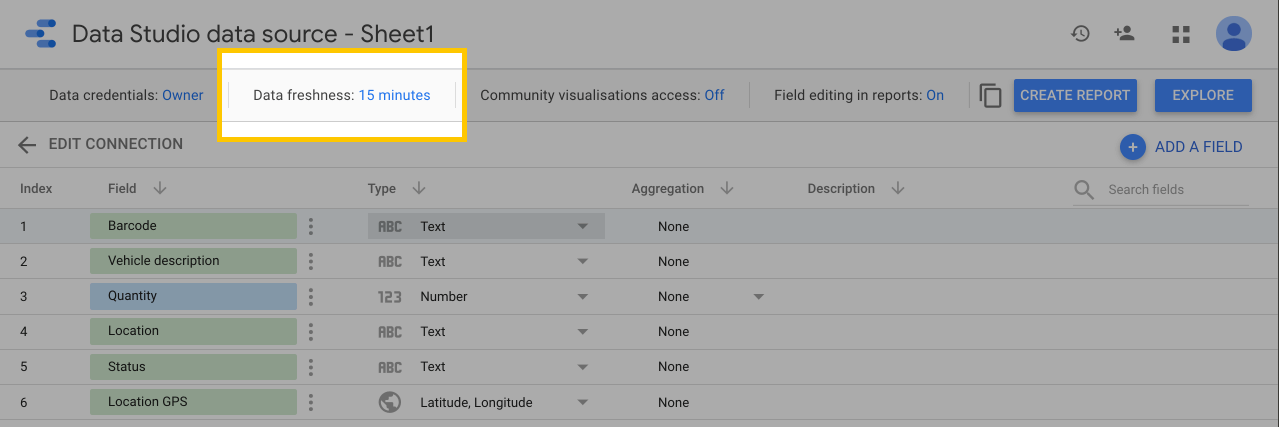

Displaying the data refreshing frequency in Data Studio

Have a question about using Orca Scan with Data Studio?

We're always happy to help, chat with us live or drop us an email.
