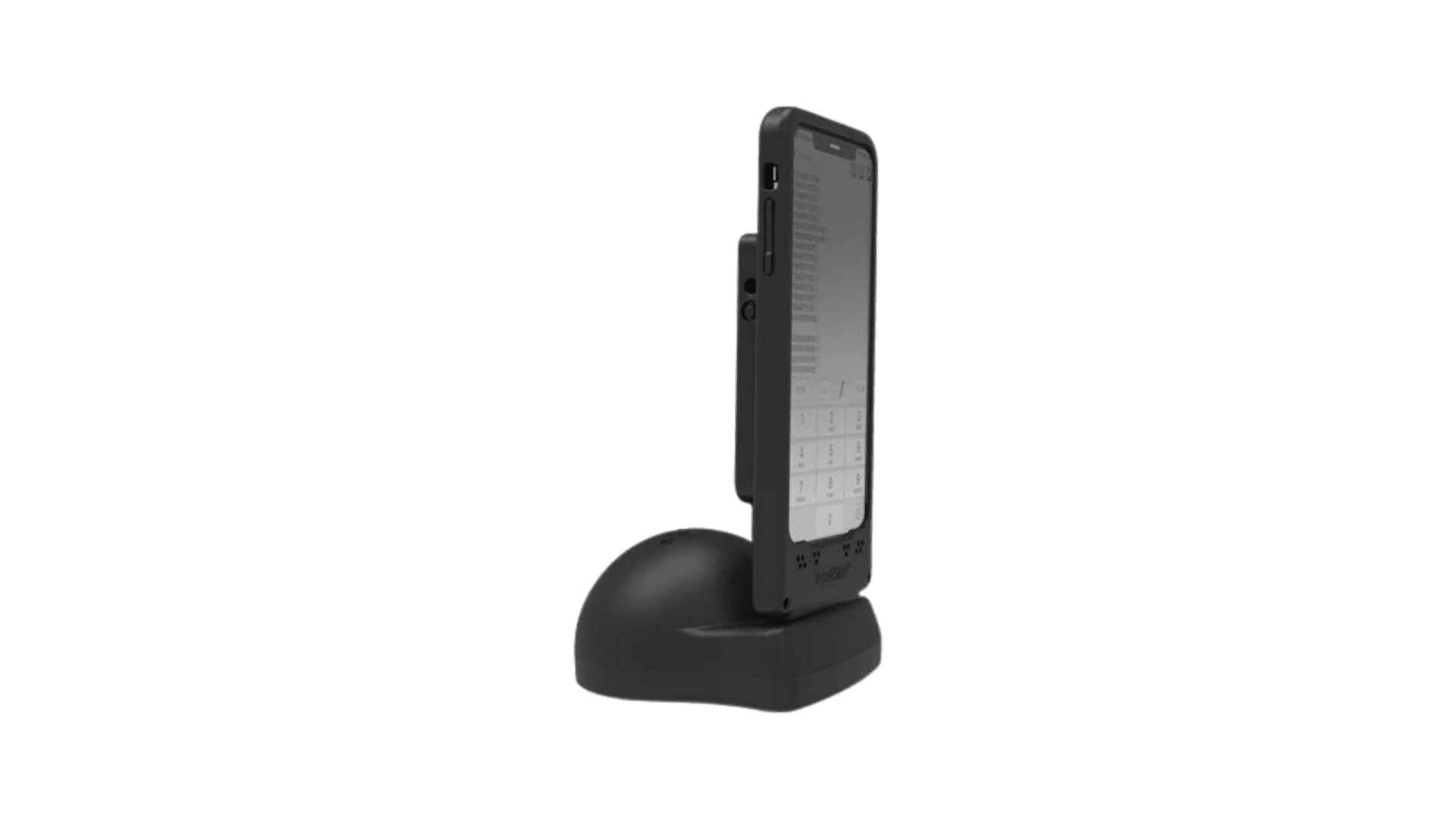

The DuraSled DS840 is a rugged barcode scanning sled designed for iPhone, combining enterprise-grade 1D and 2D barcode scanning with a protective case for demanding mobile workflows.
High-performance scanning, Bluetooth wireless connectivity, and an ergonomic sled design make the DS840 suitable for inventory management, asset tracking, field service, healthcare, retail, and logistics applications.
DuraSled DS840 specs
- Integrated 1D/2D barcode scanner with protective iPhone sled design
- Reads printed and on-screen barcodes, including QR Codes, PDF417, Data Matrix and Aztec codes
- Bluetooth Class 2 wireless connectivity with HID, SPP, and iOS Application modes
- Compatible with supported iPhone models*
- Replaceable 700 mAh lithium-polymer battery providing up to 10,000 scans per charge*
- USB charging with approximately 4-hour recharge time*
- Reading distance of up to 19.5 in (49.5 cm)
- Rugged housing designed to help protect compatible iPhones from everyday drops and impacts
- LED indicators for battery status, Bluetooth connection, and successful scans
- Supports hands-free presentation style mode when used with an optional charging dock
*Compatibility, battery life and charging times are manufacturer estimates and may vary depending on the iPhone model, usage and operating conditions
DuraSled DS840 setup guide
Setting up your DuraSled DS840 scanner is simple. Follow these steps:
- Charge the DuraSled using the supplied USB cable for at least 4 hours before first use
- Insert your iPhone into the DS840 scanner and ensure it is securely fitted
- Turn on the DuraSled by pressing and holding the power button
- Configure the scanner for Basic Keyboard Mode (HID) by scanning the barcode below
- Enable Bluetooth in your iPhone settings and pair with the DS840. The scanner appears using the last six characters of its Bluetooth address
- Launch the Orca Scan mobile app on your iPhone
That’s it! You can now use the DuraSled DS840 to capture data with Orca Scan.
Scan barcodes into the systems you love
You can now use the DuraSled DS840 to scan barcodes into the following systems:
- Scan barcodes into an Excel spreadsheet
- Scan barcodes into a Google spreadsheet
- Build dashboards using Google Data Studio
- Visualise barcode data using Microsoft Power BI
- Scan barcodes into MySQL
